12.8V 21.6Ah LiFePO4 Battery (URB-X5)

(Ultralife, 276Wh)

£
Availability: Out of stock
The Ultralife X5 Hot-Swappable Battery is a 12.8V 21.6Ah (276.5Wh) rechargeable Lithium Iron Phosphate smart battery which has been specifically designed to provide power to medical carts via the Ultralife X5 Power System [NEED TO ADD LINK] or X5-LITE USB-C/USB-A Battery Cradle [NEED TO ADD LINK]. For high strength and reduced weight, the X5 Hot-Swappable Battery features a silver, extruded aluminium body with traffic white aluminium endcaps and grab handle. An innovative connector interface allows the battery to be inserted into its X5 Battery Cradle [NEED TO ADD LINK] in either direction, making battery change quick and simple. The use of Lithium Iron Phosphate (LiFePO4 or LFP) chemistry within the X5 Hot-Swappable Battery is considered to be one of the safest rechargeable Lithium chemistries and it provides in excess of 2000 cycles, or 5 years of daily use. The battery contains Ultralife's Smart ! Circuit technology which provides gas gauging, communication, active protection and cell balancing functions. The battery communicates over System Management Bus (SMBus) and is Smart Battery Specification (SBS) compliant, allowing it to be easily incorporated into a device power management system. A push-button activated, state of charge indicator featuring ten blue LEDs provides a simple capacity indication and the LEDs will automatically illuminate when the battery is charging so the user can quickly determine state-of-charge. The battery should be charged using a constant current / constant voltage (CC/CV) regime where the maximum current is 20A (10A recommended) and the maximum voltage is 14.6V (14.4V recommended). The Ultralife 2-bay X5 Smart Battery Charger [NEED TO ADD LINK] is available which can be either wall or desk mounted. The X5 Hot-Swappable Battery meets the requirements of UN 38.3 (transport), IEC 62133-2:2017 (safety), and UL/CSA 62133. It is also CE and UKCA marked. Although primarily designed to power the X5 Power System, the X5 Hot-Swappable Battery and X5 Battery Cradle are available separately, to be designed into other OEM equipment, either with Ultralife or custom branding. Contact us for more information.
Read more
Battery Cradle (UCA-X5)
Battery Cradle (UCA-X5) (Ultralife, For use with URB-X5 batteries)

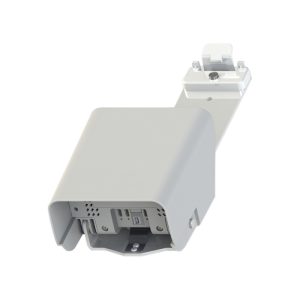

1 Bay Pole Cart Battery Charger (X5-LITE)
1 Bay Pole Cart Battery Charger (X5-LITE) (Ultralife, For use with URB-X5 batteries, Charges USB-C & USB-A devices)
2 Bay Wall/Desktop Charger (UCH-X5)
2 Bay Wall/Desktop Charger (UCH-X5) (Ultralife, For use with URB-X5 batteries)
Part number

URB-X5

Chemistry

Lithium Iron Phosphate

Cell Quantity

48

Cell Array (Series / Parallel)

4S/12P

Voltage (range)

10.0V to 14.4V

Voltage (nominal)

12.8V

Capacity (nominal)

21.6Ah

Energy (nominal)

276.5Wh

Gravimetric energy density

81Wh/Kg

Volumetric energy density

112Wh/l

Discharge current (maximum)

20A

Discharge power (maximum)

200W

Pulse capability

84A (<21ms)

Internal resistance

<50mO

Self Discharge

<5% per month

Cycle life

>2000

Housing

Aluminium

Length (nominal)

75.5

Width (nominal)

120.5

Height (nominal)

317.0

Weight (typical)

3.4Kg

Colour

Silver anodised aluminium housing with traffic white handle and endcaps

Connector

Sub-flush gold plated contacts for power and communications

Operating temperature (charge)

0DegC to +45DegC

Storage temperature

-20DegC to +50DegC

Operating temperature (discharge)

-10DegC to +50DegC

Visual state of charge indicator

Yes (Blue LED)

Communications

SMBus

Data system

SBS

Over charge protection

Yes

Over discharge protection

Yes

Over current protection

Yes

Over temperature protection

Yes

Cell balancing function

Yes

CE compliant

Yes

UN 38.3 (transportation) certified

Yes

UL 2054 (safety) certified

Custom option (contact us)

IEC 62133 (safety) certified

Yes (IEC 62133-2:2017)

UL 62133 (safety) certified

Yes (IEC 62133-2)

  • Robust and lightweight full aluminum case & handle construction
  • Rechargeable Lithium Iron Phosphate chemistry for optimal endurance and safety
  • Intuitive bi-directional docking simplifies use
  • Ultralife Smart-Circuit technology for accurate fuel gauging
  • Blue LED gas gauge indicator for quick capacity check
  • Certified to the latest transportation and safety standards
  • Medical Carts
  • Warehouse terminals
  • Robotics
Ultralife X5 Brochure Rev D
URB-X5 data sheet

No alternatives found.

Accessories
Battery Cradle (UCA-X5)
Battery Cradle (UCA-X5) (Ultralife, For use with URB-X5 batteries)
1 Bay Pole Cart Battery Charger (X5-LITE)
1 Bay Pole Cart Battery Charger (X5-LITE) (Ultralife, For use with URB-X5 batteries, Charges USB-C & USB-A devices)
2 Bay Wall/Desktop Charger (UCH-X5)
2 Bay Wall/Desktop Charger (UCH-X5) (Ultralife, For use with URB-X5 batteries)
Technical
Part number

URB-X5

Chemistry

Lithium Iron Phosphate

Cell Quantity

48

Cell Array (Series / Parallel)

4S/12P

Voltage (range)

10.0V to 14.4V

Voltage (nominal)

12.8V

Capacity (nominal)

21.6Ah

Energy (nominal)

276.5Wh

Gravimetric energy density

81Wh/Kg

Volumetric energy density

112Wh/l

Discharge current (maximum)

20A

Discharge power (maximum)

200W

Pulse capability

84A (<21ms)

Internal resistance

<50mO

Self Discharge

<5% per month

Cycle life

>2000

Housing

Aluminium

Length (nominal)

75.5

Width (nominal)

120.5

Height (nominal)

317.0

Weight (typical)

3.4Kg

Colour

Silver anodised aluminium housing with traffic white handle and endcaps

Connector

Sub-flush gold plated contacts for power and communications

Operating temperature (charge)

0DegC to +45DegC

Storage temperature

-20DegC to +50DegC

Operating temperature (discharge)

-10DegC to +50DegC

Visual state of charge indicator

Yes (Blue LED)

Communications

SMBus

Data system

SBS

Over charge protection

Yes

Over discharge protection

Yes

Over current protection

Yes

Over temperature protection

Yes

Cell balancing function

Yes

CE compliant

Yes

UN 38.3 (transportation) certified

Yes

UL 2054 (safety) certified

Custom option (contact us)

IEC 62133 (safety) certified

Yes (IEC 62133-2:2017)

UL 62133 (safety) certified

Yes (IEC 62133-2)

Key Features
  • Robust and lightweight full aluminum case & handle construction
  • Rechargeable Lithium Iron Phosphate chemistry for optimal endurance and safety
  • Intuitive bi-directional docking simplifies use
  • Ultralife Smart-Circuit technology for accurate fuel gauging
  • Blue LED gas gauge indicator for quick capacity check
  • Certified to the latest transportation and safety standards
Common Applications
  • Medical Carts
  • Warehouse terminals
  • Robotics
Downloads
Ultralife X5 Brochure Rev D
URB-X5 data sheet
Alternatives

No alternatives found.

Image shown for illustration purposes only. Product label details may differ slightly on actual product purchased.
