SJ3008HD29

18.0V 5.32Ah (96.0Wh) Lithium Ion Battery (20A capable)

£204.79
Availability: Available on back-order

The SJ3008HD29 is a ruggedised 18.0V 5.32Ah (96.0Wh) Lithium-ion smart battery that can be designed into a wide range of products and equipment. The battery comprises ten 3.6V 3.4Ah 18650 cells in a 5-series, 2-parallel array and can deliver up to 20A of discharge current.

Features unique to the S-Series of Inspired Energy batteries include an LED “press-to-display” state of charge display, as well as a BQ40Z80 fuel gauge. Additionally, S-Series batteries have an easy-to-use 7-pin blade style battery connector, rated at 20A, and are suitable for low temperature operation down to -30°C. The mating connector (619095) is currently available in a straight C.B. orientation, with a right-angled variant pending.

Read more

No accessories found.

Part number

SJ3008HD29

Chemistry

Rechargeable Lithium Ion

Cell Quantity

10

Cell Array

5 series / 2 parallel

Voltage

18.0V (nominal)

Capacity

5.32Ah (typical)

Energy

96.0Wh (typical)

Discharge Current

20.0A (maximum)

Discharge Power

250W

Connector

7-pin blade style

Housing

Injection moulded plastic

Length

207.00mm (maximum)

Width

74.00mm (maximum)

Height

27.00mm (maximum)

Weight

XXg (typical)

Colour

Black

State of charge indicator

Yes

Communications

SMBus (System Management Bus)

Data system

SBDS (Smart Battery Data Specification)

Over Charge Protection

Yes

Over Discharge Protection

Yes

Over Current Protection

Yes

Over Temperature Protection

Yes

Cell Balancing Function

Yes

CE / UKCA compliant

Yes

UN 38.3

Yes

IEC 62133-2

No

UL 62133-2

No

  • 10 cell Lithium-ion battery
  • Ruggedised case design
  • LED “press to display” state-of-charge display
  • BQ40Z80 fuel gauge
  • New easy-to-use 7-pin blade style battery connector (rated at 20A)
  • Low temperature operation down to -30°C
  • Portable electronic equipment
Inspired Energy Battery Safety Data Sheet V14
Inspired Energy CE Declaration Batteries 12Jan21
Inspired Energy UN38.3 Declaration 3rdAug16
Shipping & Handling LiIon Batteries 16-11-21
Inspired Energy REACH & RoHS Declaration Jan 2021
Inspired Energy Smart LiIon Battery User Notes

No alternatives found.

Accessories

No accessories found.

Technical
Part number

SJ3008HD29

Chemistry

Rechargeable Lithium Ion

Cell Quantity

10

Cell Array

5 series / 2 parallel

Voltage

18.0V (nominal)

Capacity

5.32Ah (typical)

Energy

96.0Wh (typical)

Discharge Current

20.0A (maximum)

Discharge Power

250W

Connector

7-pin blade style

Housing

Injection moulded plastic

Length

207.00mm (maximum)

Width

74.00mm (maximum)

Height

27.00mm (maximum)

Weight

XXg (typical)

Colour

Black

State of charge indicator

Yes

Communications

SMBus (System Management Bus)

Data system

SBDS (Smart Battery Data Specification)

Over Charge Protection

Yes

Over Discharge Protection

Yes

Over Current Protection

Yes

Over Temperature Protection

Yes

Cell Balancing Function

Yes

CE / UKCA compliant

Yes

UN 38.3

Yes

IEC 62133-2

No

UL 62133-2

No

Key Features
  • 10 cell Lithium-ion battery
  • Ruggedised case design
  • LED “press to display” state-of-charge display
  • BQ40Z80 fuel gauge
  • New easy-to-use 7-pin blade style battery connector (rated at 20A)
  • Low temperature operation down to -30°C
Common Applications
  • Portable electronic equipment
Downloads
Inspired Energy Battery Safety Data Sheet V14
Inspired Energy CE Declaration Batteries 12Jan21
Inspired Energy UN38.3 Declaration 3rdAug16
Shipping & Handling LiIon Batteries 16-11-21
Inspired Energy REACH & RoHS Declaration Jan 2021
Inspired Energy Smart LiIon Battery User Notes
Alternatives

No alternatives found.

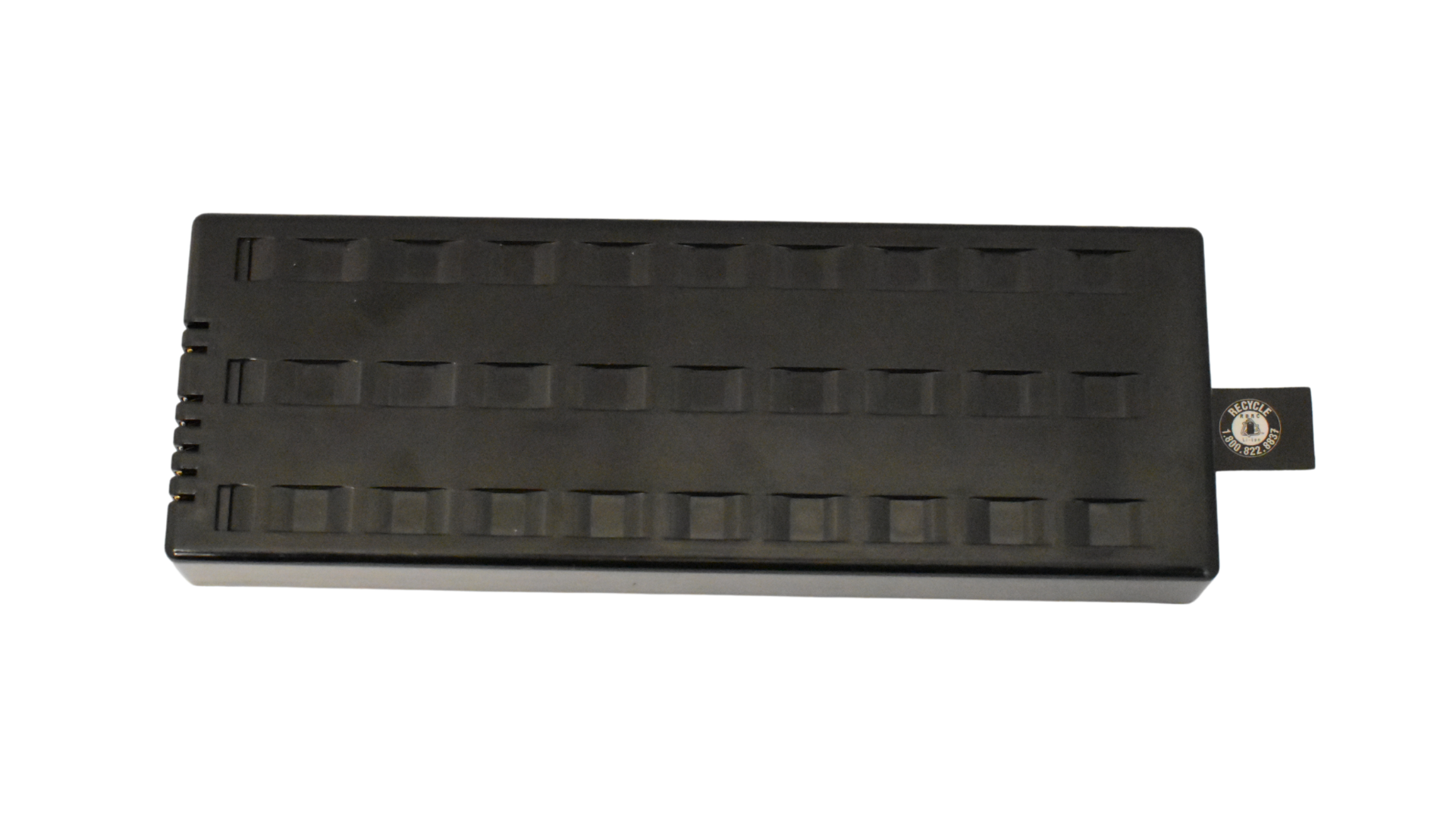

Image shown for illustration purposes only. Product label details may differ slightly on actual product purchased.
